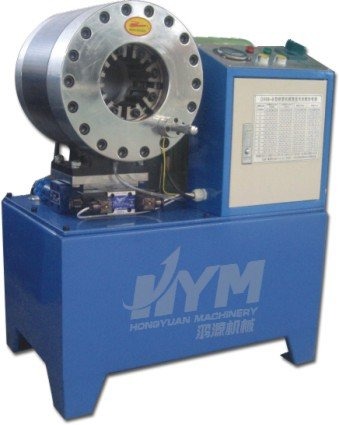

Name: DX68 High Pressure Hose Crimping Machine (1/4" - 2" 4SP) DX-68
Brand: DX68 High Pressure Hose Crimping Machine (1/4" - 2" 4SP) DX-68
SKU: DX-68
Rating: 4.8 (156 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Type: Hydraulic Breakers

Model Number: DX-68

crimping ID: 1/4''-2'' 4SP

Operation Mode: Automatic

precision: 0.02mm

Input voltage: 380V 50HZ

Informazioni di base

Model Number: DX-68

Termini di pagamento e spedizione

Packaging Details: wooden case

Supply Ability: 60 Set/Sets per Week for your need

Descrizione di prodotto

hose crimping machine ,hydraulic hose crimping machine ,hose crimperDX68.is low price,Reliable quality.

Model DX68 hose crimping machine is used for buckling processing for high pressure rubber pipe .

Model DX68 hose crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.

This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.

II. Main Technical Feature

Buckling range: Φ6—Φ51mm

Max. buckling force: 400T

Scale accuracy: 0.02mm

Rated pressure: 31.5 MPa

Oil pump displacement: 5ml/rad (380V); 2.5ml/rad (220V)

Overall dimensions: 670(L)×490(W)×780(H)mm
